5V fixed positive linear voltage regulator, offering 500mA output current with 2% output voltage accuracy. Features a maximum input voltage of 35V and a dropout voltage of 2V. Operates across a wide temperature range of -40°C to 125°C. Packaged in a TO-220 case for through-hole mounting.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM78M05CT/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
7.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
5V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
78dB
Quiescent Current
3mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
4.572mm
Tolerance
5%
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM78M05CT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM78M05CT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

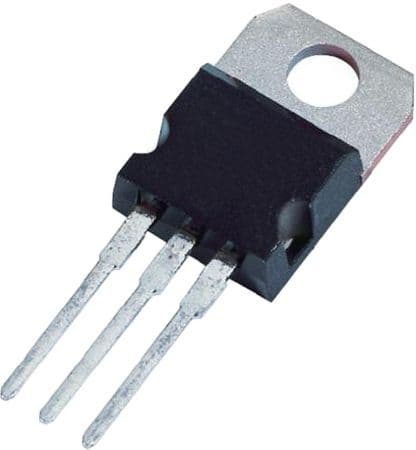

Product Images
