PackageTO-92
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments LM79L12ACZ/LFT4 technical specifications.
General
Package/Case
TO-92
Dropout Voltage
75mV
Lead Free
Lead Free
Max Input Voltage
-35V
Min Input Voltage
-14.6V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
100mA
Mount
Through Hole
Number of Outputs
1
Output Current
100mA
Output Type
Fixed
Output Voltage
-12V
Package Quantity
1800
Packaging
Tape and Reel
Polarity
Negative
Quiescent Current
6mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
LM79L12
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM79L12ACZ/LFT4 Datasheet
Download the complete datasheet for Texas Instruments LM79L12ACZ/LFT4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

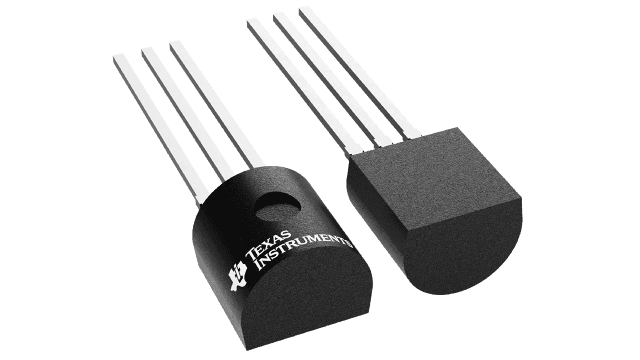

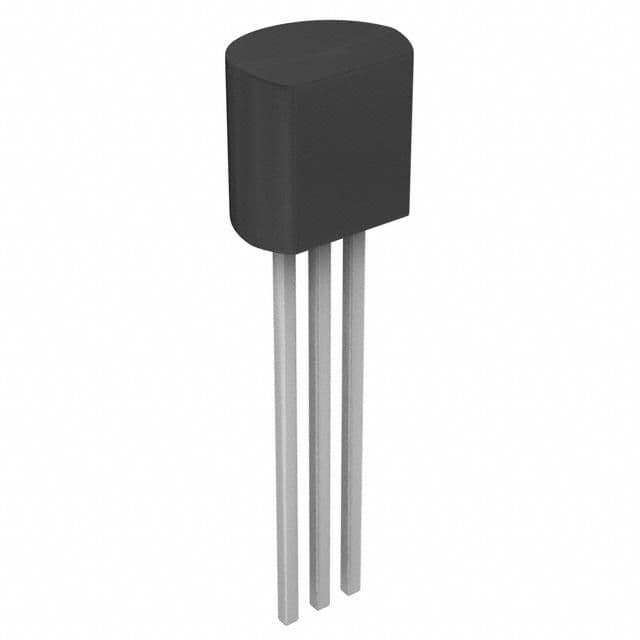

Product Images
