3-pin voltage supervisor IC for supply monitoring. Features active-low, push-pull reset output with a typical threshold voltage of 3.08V, ranging from 3.04V to 3.11V. Operates with a supply voltage range of 1V to 5.5V and a low quiescent current of 15µA. This surface-mount component, housed in a SOT-23 package, supports an operating temperature range of -40°C to 105°C and offers a reset timeout of 140ms.
PackageSOT-23
Current15uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Texas Instruments LM809M3-3.08 technical specifications.
General
Package/Case
SOT-23
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
3.11V
Min Reset Threshold Voltage
3.04V
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Output
TOTEM-POLE
Overvoltage Threshold
3.11V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
320mW
Quiescent Current
15uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
15uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.04V
DC Rated Voltage
6V
Watchdog Timer
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM809M3-3.08 Datasheet
Download the complete datasheet for Texas Instruments LM809M3-3.08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

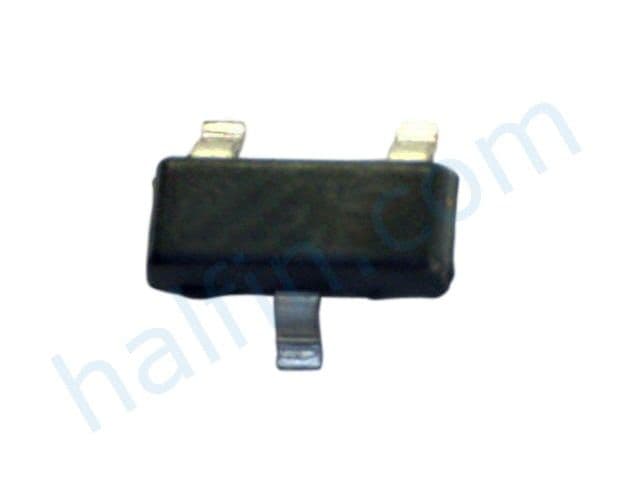

Product Images
