Digital temperature sensor IC with SMBus interface, offering 13-bit resolution. Features a wide operating temperature range from -40°C to 125°C and a supply voltage range of 3V to 3.6V. Surface mountable in a 10-pin WSON EP package, this lead-free and RoHS compliant component operates with a typical supply current of 456µA. Ideal for power management applications, it is supplied in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM96163CISD/NOPB technical specifications.
General
Interface
SMBus
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
456uA
Operating Supply Voltage
3.3V
Output Current
4mA
Output Type
Digital
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
456uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®, TruTherm®
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM96163CISD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM96163CISD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

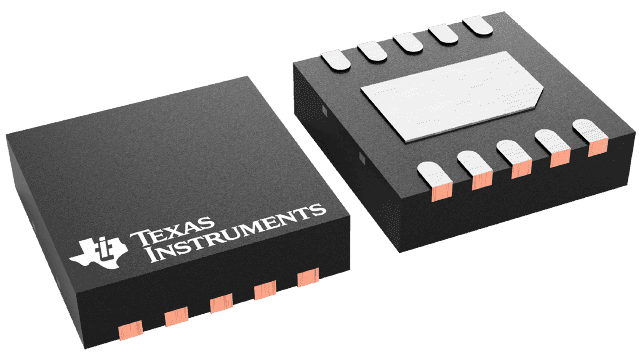

Product Images
