The LM96194CISQ/NOPB is a 9-bit SMBus fan controller from Texas Instruments. It operates within a temperature range of -40°C to 100°C and is powered by a 3.3V supply voltage. This lead-free device features a quiescent current of 1.6mA and is RoHS compliant. It is available in a WQFN-48 package type and is suitable for surface mount applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM96194CISQ/NOPB technical specifications.
General
| Interface | SMBus |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 9 |
| Operating Supply Voltage | 3.3V |
| Output Type | Digital |
| Packaging | Tape and Reel |
| Quiescent Current | 1.6mA |
| Radiation Hardening | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Series | TruTherm® |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM96194CISQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM96194CISQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

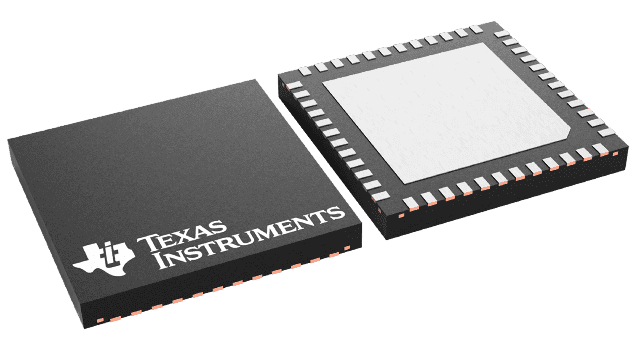

Product Images
