Ultra-low input current operational amplifier featuring 0.01pA input bias current and 1mV input offset voltage. This general-purpose amplifier offers a 1.3MHz bandwidth and 1.5V/µs slew rate, with a voltage gain of 122.92dB. Operates from a dual supply of 4.5V to 15.5V, consuming 550uA supply current. Packaged in an 8-pin PDIP for through-hole mounting, it functions across an industrial temperature range of -40°C to 85°C.
Frequency10kHz
PackagePDIP
Current550uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LMC6001BIN/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
PDIP
Common Mode Rejection Ratio
72dB
Gain Bandwidth Product
1.3MHz
Height
4.57mm
Input Bias Current
0.01pA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Length
10.16mm
Min Dual Supply Voltage
4.5V
Max Frequency
10kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
750uA
Max Supply Voltage
15.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
550uA
Output Current
34mA
Output Current per Channel
34mA
Package Quantity
40
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
66dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.5V/µs
Supply Current
550uA
Unity Gain Bandwidth Product
1.3MHz
Voltage Gain
122.92dB
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMC6001BIN/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMC6001BIN/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

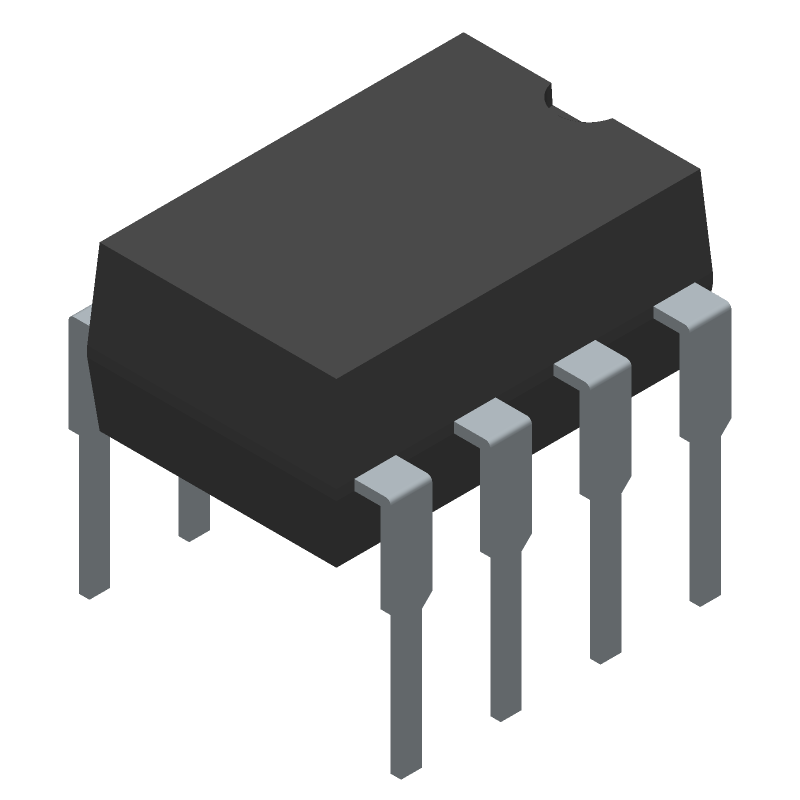

Product Images
