General purpose operational amplifier featuring a 1.3MHz gain bandwidth product and 1.5V/µs slew rate. This single-channel, CMOS amplifier offers a low input bias current of 0.01pA and an input offset voltage of 150µV. Designed for surface mounting in an SOIC-8 package, it operates from a 4.5V to 15.5V supply range with a typical supply current of 550µA. The device provides a high voltage gain of 122.92dB and an output current of 34mA.
PackageSOIC
Current550nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMC6081IMX technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOIC
Common Mode Rejection Ratio
66dB
Gain Bandwidth Product
1.3MHz
Input Bias Current
0.01pA
Input Offset Voltage (Vos)
150uV
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
15.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
550uA
Output Current
34mA
Output Current per Channel
34mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
1.5V/µs
Supply Current
550nA
Technology
CMOS
Voltage Gain
122.92dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LMC6081IMX Datasheet
Download the complete datasheet for Texas Instruments LMC6081IMX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

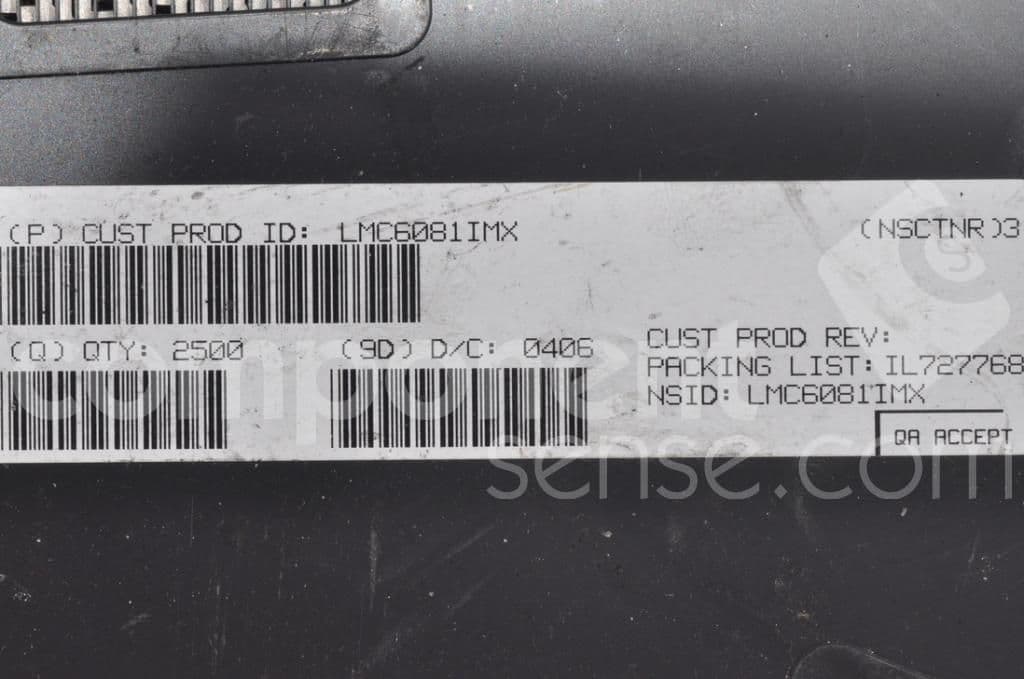

Product Images
