Dual operational amplifier featuring a 1.3MHz gain bandwidth product and 1.5V/µs slew rate. This general-purpose amplifier offers 2 channels with a voltage gain of 122.92dB and a low input bias current of 0.01pA. Operating from 4.5V to 15.5V supply, it provides 34mA output current per channel. Packaged in an 8-pin PDIP for through-hole mounting, it operates within a -40°C to 85°C temperature range.
PackagePDIP
Current1.1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LMC6082IN technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
PDIP
Common Mode Rejection Ratio
66dB
Gain Bandwidth Product
1.3MHz
Input Bias Current
0.01pA
Input Offset Voltage (Vos)
150uV
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
15.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Operating Supply Current
1.1mA
Output Current
34mA
Output Current per Channel
34mA
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
1.5V/µs
Supply Current
1.1mA
Technology
CMOS
Voltage Gain
122.92dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LMC6082IN Datasheet
Download the complete datasheet for Texas Instruments LMC6082IN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

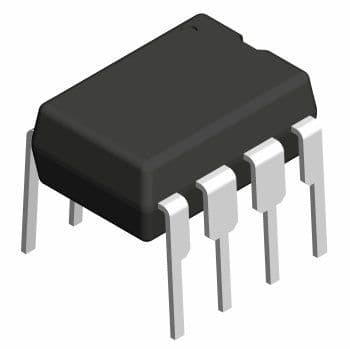

Product Images
