Quad operational amplifier (op-amp) featuring a 1.4MHz gain bandwidth product and 1.1V/µs slew rate. This general-purpose amplifier offers a 1mV input offset voltage and 0.002pA input bias current. Operating from a 4.75V to 15.5V supply, it provides 40mA output current per channel. The component is housed in a 14-pin DIP package for through-hole mounting.
PackageDIP
Current1.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LMC660CN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 500kHz |
| Package/Case | DIP |
| Common Mode Rejection Ratio | 63dB |
| Gain Bandwidth Product | 1.4MHz |
| Height | 3.3mm |
| Input Bias Current | 0.002pA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Length | 19.05mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 2.7mA |
| Max Supply Voltage | 15.5V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.5mA |
| Output Current | 40mA |
| Output Current per Channel | 40mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 63dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Slew Rate | 1.1V/µs |
| Supply Current | 1.5mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.4MHz |
| Voltage Gain | 126.02dB |
| Width | 6.35mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LMC660CN Datasheet
Download the complete datasheet for Texas Instruments LMC660CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

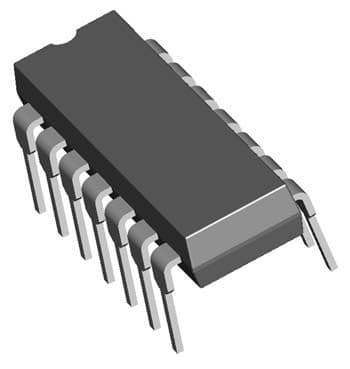

Product Images
