Dual H-bridge motor driver IC for brushed DC motors, featuring a maximum supply voltage of 55V and a maximum output current of 3A per channel. This through-hole component, housed in a TO-220 package, offers a parallel interface for control and operates from a minimum supply voltage of 12V. It provides two independent output channels, with an operating supply current of 13mA. The device is RoHS compliant and lead-free.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LMD18200T/NOPB technical specifications.
General
| Package/Case | TO-220 |
| Height | 10.69mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 20.02mm |
| Max Collector Current | 3A |
| Max Supply Voltage | 55V |
| Min Supply Voltage | 12V |
| Motor Type | Brushed |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Operating Supply Current | 13mA |
| Output Current | 3A |
| Output Voltage | 55V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMD18200T/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMD18200T/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

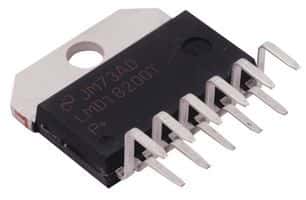

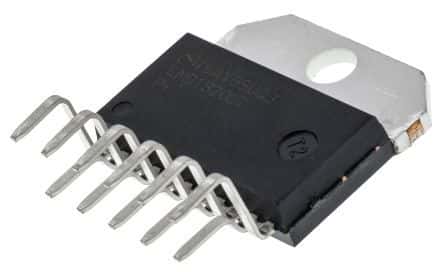

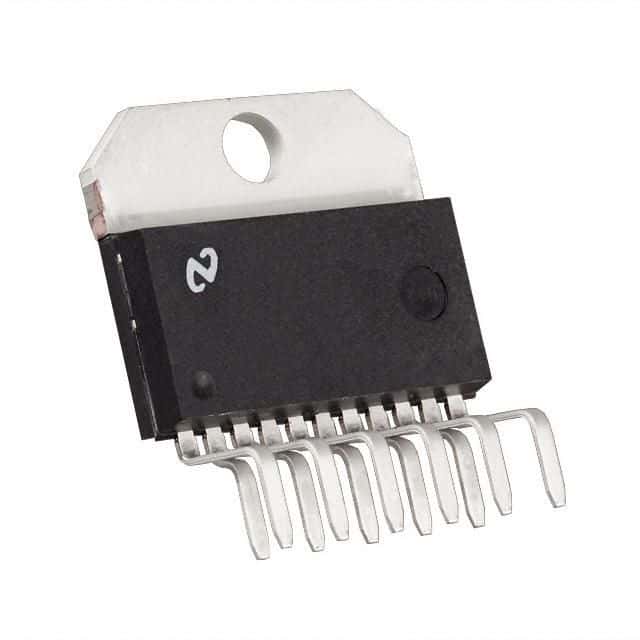

Product Images
