The LMH0040SQE is a single LVDS transceiver from Texas Instruments. It operates between -40°C and 85°C and has a power dissipation of 440mW. The device is available in a surface mount package and is not RoHS or Reach SVHC compliant.
MountingSurface Mount
Power440mW
Quick Jump:
Technical Specifications
Texas Instruments LMH0040SQE technical specifications.
General
| Data Rate | 3000Mbps |
| Interface | LVDS |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Elements | 1 |
| Number of Receivers | 5 |
| Packaging | Tape and Reel |
| Power Dissipation | 440mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LMH0040SQE Datasheet
Download the complete datasheet for Texas Instruments LMH0040SQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

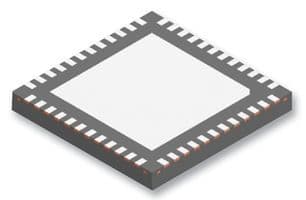

Product Images
