Ultra-linear, fully differential operational amplifier featuring a 2.8 GHz -3dB bandwidth and 2.5 GHz gain bandwidth product. This single-channel amplifier offers a high Common Mode Rejection Ratio of 83dB and a Power Supply Rejection Ratio of 74dB. Designed for surface mount applications, it operates from a dual supply voltage range of ±2.35V to ±2.625V or a single supply of 4.7V to 5.25V. Key specifications include a 6200 V/µs slew rate and 150mA output current per channel, with an operating supply current of 52mA. The component is RoHS compliant and packaged in tape and reel.
Current57mA
Resistance180kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMH6554LE/NOPB technical specifications.
General
| -3db Bandwidth | 2.8GHz |
| Amplifier Type | DIFFERENTIAL |
| Common Mode Rejection Ratio | 83dB |
| Gain Bandwidth Product | 2.5GHz |
| Height | 600um |
| Input Bias Current | 10uA |
| Input Offset Voltage (Vos) | 6.5mV |
| Input Resistance | 180kR |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max Dual Supply Voltage | 2.625V |
| Min Dual Supply Voltage | 2.35V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 52mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 150mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 74dB |
| Resistance | 180kR |
| Response Time | 4ns |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Slew Rate | 6200V/µs |
| Supply Current | 57mA |
| Thickness | 600um |
| Voltage Gain | 0dB |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMH6554LE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH6554LE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

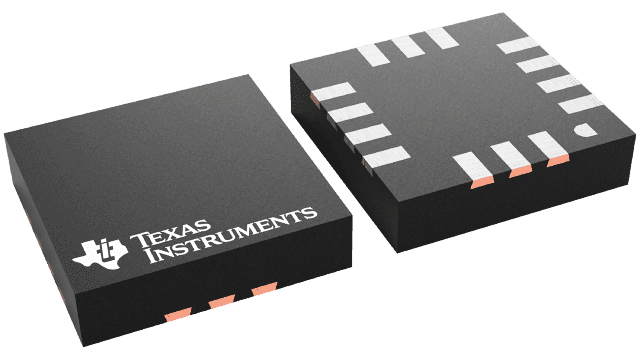

Product Images
