High-performance, single-channel CMOS operational amplifier featuring a 250MHz -3dB bandwidth and 155MHz gain bandwidth product. Delivers a 275V/µs slew rate and 100mA output current. Operates from a 2.4V to 5.5V supply, with a typical supply current of 9.6mA. Offers 56dB CMRR and 55dB PSRR, with 1mV input offset voltage and 50pA input bias current. Packaged in a 6-SC surface mount configuration, suitable for operation between -40°C and 85°C.
PackageSC
Current9.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMH6601MGX/NOPB technical specifications.
General
-3db Bandwidth
250MHz
Package/Case
SC
Common Mode Rejection Ratio
56dB
Gain Bandwidth Product
155MHz
Input Bias Current
50pA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
9.6mA
Output Current
100mA
Output Current per Channel
180mA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
55dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
275V/µs
Supply Current
9.6mA
Technology
CMOS
Unity Gain Bandwidth Product
155MHz
Voltage Gain
66dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMH6601MGX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH6601MGX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

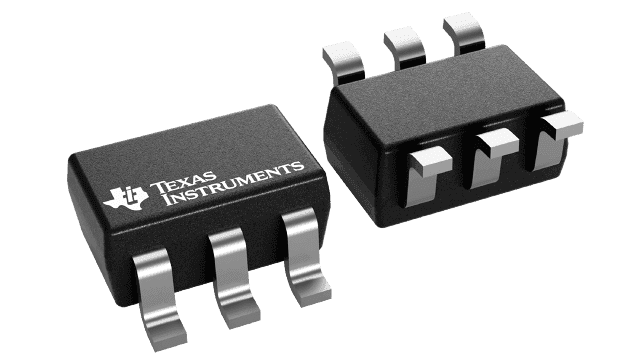

Product Images
