Step-down DC/DC switching regulator with adjustable output voltage from 765mV to 34V. Features a wide input voltage range of 4.5V to 42V and a maximum output current of 600mA. This surface mount component operates from -40°C to 125°C and is housed in a compact SOT-23-6 package. The regulator offers a maximum duty cycle of 87% and a low quiescent current of 1.3mA.
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMR14206XMKE/NOPB technical specifications.
General
Package/Case
SOT-23-6
Height
1mm
Lead Free
Lead Free
Length
3.05mm
Max Duty Cycle
87%
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
34V
Min Output Voltage
765mV
Max Supply Voltage
42V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Output Configuration
Positive
Output Current
600mA
Output Type
Adjustable
Output Voltage
34V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1.3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
870um
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMR14206XMKE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMR14206XMKE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

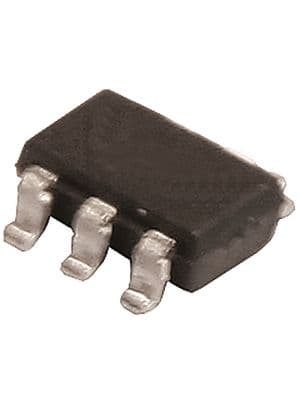

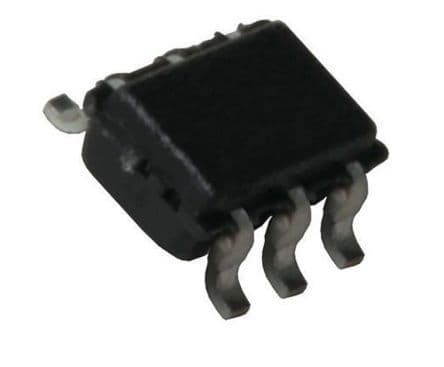

Product Images
