PackageTO-263-4
Current Rating3A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LMS1587CS-1.5 technical specifications.
General
Package/Case
TO-263-4
Current Rating
3A
Lead Free
Contains Lead
Max Input Voltage
13V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
3A
Min Output Voltage
1.5V
Max Supply Current
13mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
72dB
Quiescent Current
7mA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LMS1587CS-1.5 Datasheet
Download the complete datasheet for Texas Instruments LMS1587CS-1.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

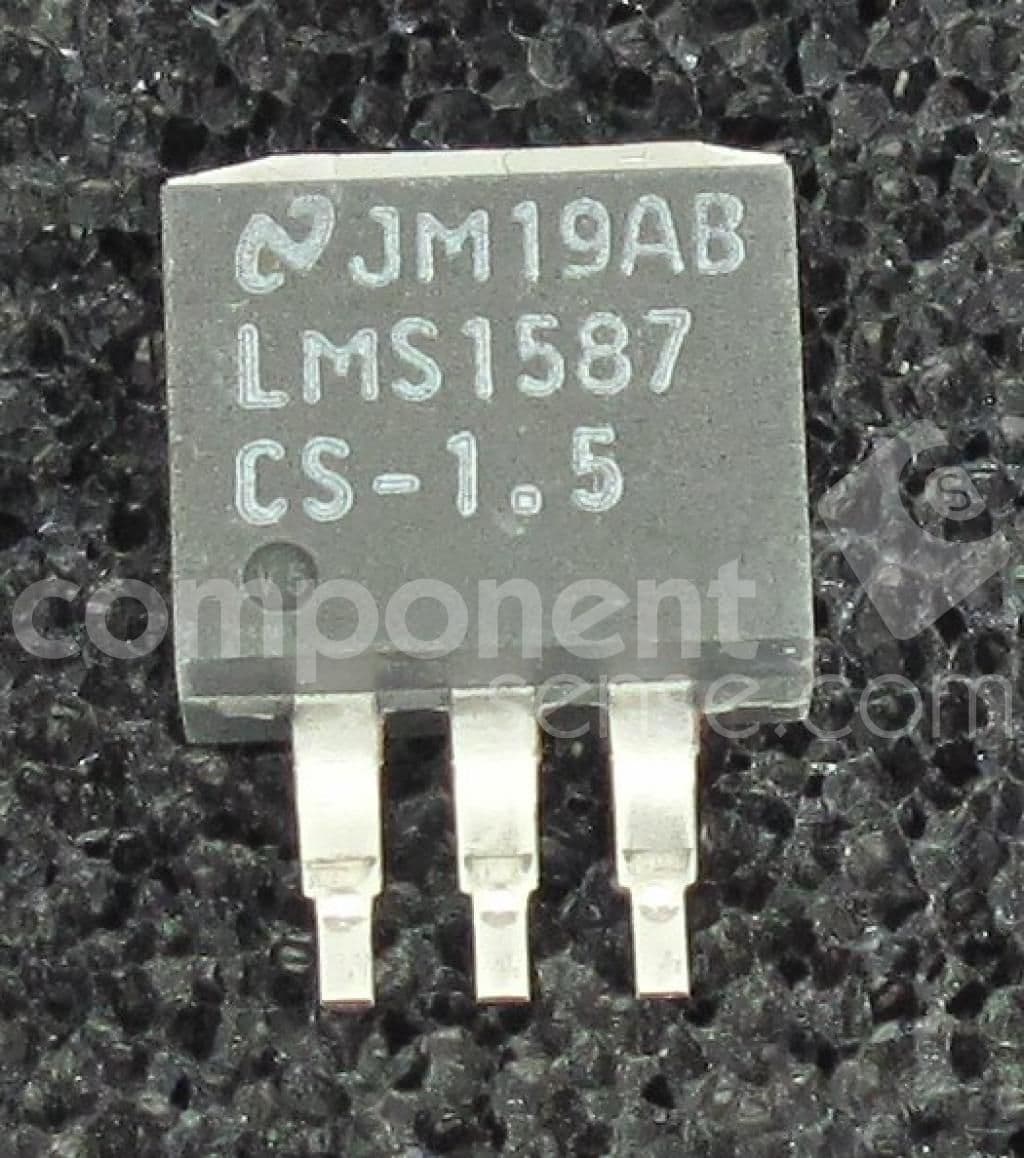

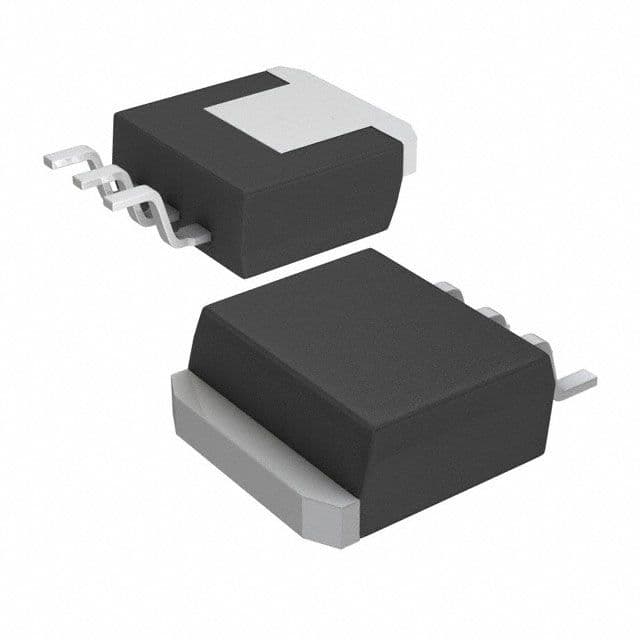

Product Images
