Texas Instruments
LMZ10504EXTTZE/NOPB
4-A Power module with 5.5-V maximum input voltage for military and rugged applications 7-TO-PMOD -55 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMZ10504EXTTZE/NOPB technical specifications.
General
Efficiency
96%
Features
UVLO
Height
0.18inch
Lead Free
Lead Free
Length
0.4inch
Max Input Voltage
5.5V
Min Input Voltage
2.95V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
20W
Mount
Surface Mount
Number of Outputs
1
Output Current
4A
Output Type
Adjustable
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
1.7mA
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Voltage - Output 1
5V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ10504EXTTZE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ10504EXTTZE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

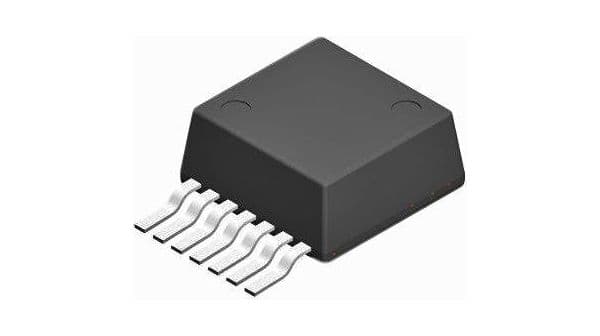

Product Images
