10A DC-DC Power Module, featuring a 6V output voltage and up to 10A output current, delivering 50W of output power. Operates with a wide input voltage range from 6V to 20V, achieving up to 92% efficiency. Includes Under Voltage Lockout (UVLO) protection and operates across a temperature range of -40°C to 85°C. This non-isolated, surface-mount component is RoHS compliant and packaged on tape and reel.
MountingSurface Mount
Power50W
Quick Jump:
Technical Specifications
Texas Instruments LMZ12010TZE/NOPB technical specifications.
General
Depth
15mm
Efficiency
92%
Features
UVLO
Height
0.23inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
0.59inch
Max Input Voltage
20V
Min Input Voltage
6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Power Dissipation
60W
Mount
Surface Mount
Number of Outputs
1
Output Current
10A
Output Power
50W
Output Voltage
6V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Voltage - Output 1
6V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ12010TZE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ12010TZE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

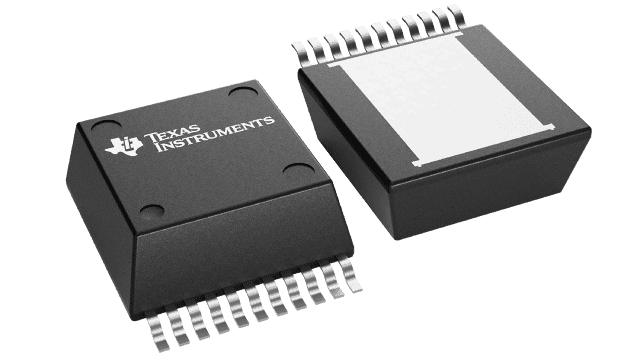

Product Images
