Texas Instruments
LMZ23605TZX/NOPB
5A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage 7-TO-PMOD -40 to 85
MountingSurface Mount
Power30W
Quick Jump:
Technical Specifications
Texas Instruments LMZ23605TZX/NOPB technical specifications.
General
Efficiency
92%
Features
UVLO
Height
0.18inch
Lead Free
Lead Free
Length
0.4inch
Max Input Voltage
36V
Min Input Voltage
6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Power Dissipation
30W
Mount
Surface Mount
Number of Outputs
1
Output Current
5A
Output Power
30W
Output Voltage
6V
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Voltage - Output 1
6V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ23605TZX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ23605TZX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

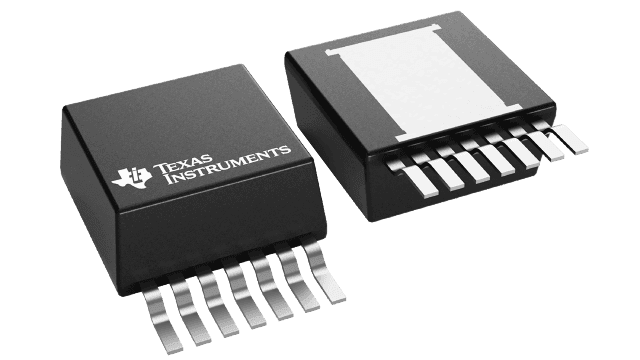

Product Images
