5V positive linear voltage regulator, offering 100mA output current with a low dropout voltage of 110mV. Features a maximum input voltage of 30V and a quiescent current of 75uA. Operates across a wide temperature range from -40°C to 125°C. Packaged in a TO-92-3 case, this lead-free component is supplied on tape and reel.
PackageTO-92-3
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2950-50LPRE3 technical specifications.
General
Accuracy
1.4%
Package/Case
TO-92-3
Dropout Voltage
110mV
Height
3.68mm
Input Bias Current
75uA
Lead Free
Lead Free
Length
4.83mm
Max Input Voltage
30V
Min Input Voltage
5.4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
5.05V
Min Output Voltage
4.95V
Number of Outputs
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
75uA
RoHS Compliant
Yes
Series
LP2950-50
Weight
0.007408oz
Width
3.43mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2950-50LPRE3 Datasheet
Download the complete datasheet for Texas Instruments LP2950-50LPRE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

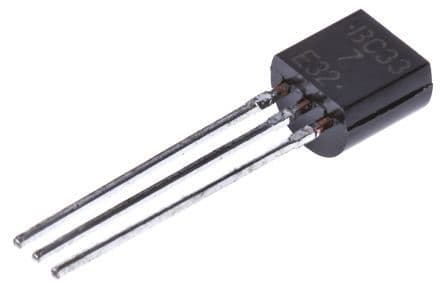

Product Images
