Positive fixed output linear voltage regulator, offering a 5V output with 0.5% accuracy. Features a low dropout voltage of 380mV and a maximum output current of 100mA. Operates with a quiescent current of 75uA and supports input voltages up to 30V. Packaged in a TO-92 through-hole mount, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2950CZ-5.0/NOPB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-92
Dropout Voltage
380mV
Height
5.2mm
Lead Free
Lead Free
Length
5.2mm
Max Input Voltage
30V
Min Input Voltage
-300mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Voltage
30V
Min Supply Voltage
2.3V
Mount
Through Hole
Nominal Output Voltage
5V
Nominal Supply Current
75uA
Number of Channels
1
Number of Outputs
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
0.5%
Package Quantity
1800
Packaging
Box
Polarity
Positive
Quiescent Current
75uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
3.6mm
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2950CZ-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP2950CZ-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

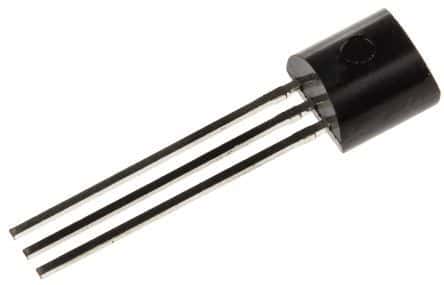

Product Images
