Texas Instruments
LP2951ACMM
100-mA, 30-V, low-dropout voltage regulator with power good & enable 8-VSSOP -40 to 125
PackageMSOP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2951ACMM technical specifications.
General
Package/Case
MSOP
Dropout Voltage
380mV
Lead Free
Contains Lead
Max Input Voltage
30V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
29V
Min Output Voltage
1.235V
Max Supply Current
14mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Adjustable, Fixed
Output Voltage
29V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
120uA
Reference Voltage
1.25V
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP2951ACMM Datasheet
Download the complete datasheet for Texas Instruments LP2951ACMM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

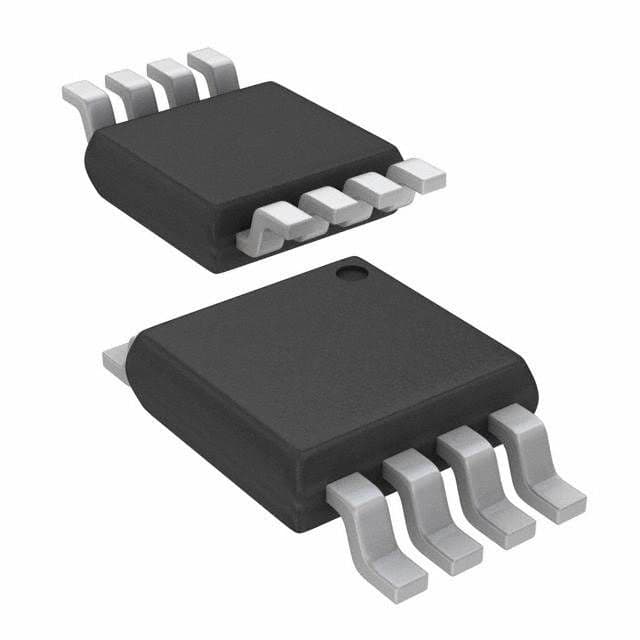

Product Images
