Texas Instruments
LP2985A-50DBVR
150-mA, 16-V, low-dropout voltage regulator with high-accuracy 5-SOT-23 -40 to 125
PackageSOT-23-5
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2985A-50DBVR technical specifications.
General
Accuracy
1%
Package/Case
SOT-23-5
Dropout Voltage
280mV
Input Bias Current
850uA
Lead Free
Lead Free
Max Input Voltage
16V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
850uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2985A-50DBVR Datasheet
Download the complete datasheet for Texas Instruments LP2985A-50DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

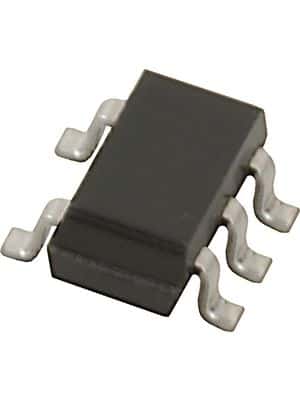

Product Images
