Positive, fixed 3.3V output, 200mA low-dropout linear voltage regulator. Features 0.5% output voltage accuracy and a low 180mV dropout voltage at 200mA. Operates from a 2.1V to 16V input range with a maximum output current of 200mA. Housed in a compact 8-VSSOP surface-mount package, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageVSSOP
Current Rating200mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2986AIMM-3.3/NOPB technical specifications.
General
Accuracy
0.5%
Package/Case
VSSOP
Current Rating
200mA
Dropout Voltage
180mV
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
16V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Output Current
200mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
1uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2986AIMM-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP2986AIMM-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

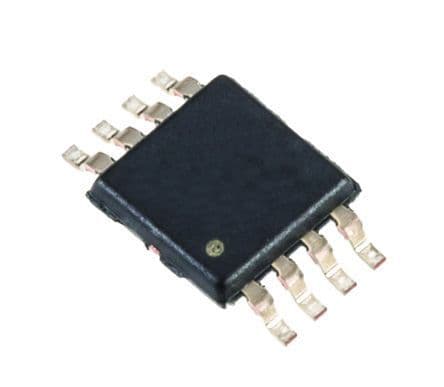

Product Images
