Positive fixed output voltage regulator, 3.3V, 250mA maximum output current. Features a low dropout voltage of 450mV and a maximum input voltage of 16V. Operates from a minimum input voltage of 2.2V with a quiescent current of 95µA. Offers 3.5% accuracy and a power supply rejection ratio of 45dB. This lead-free, RoHS compliant component is designed for surface mount applications and operates within a temperature range of -40°C to 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2992AILDX-3.3/NOPB technical specifications.
General
Accuracy
3.5%
Dropout Voltage
450mV
Lead Free
Lead Free
Max Input Voltage
16V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3.3V
Max Supply Current
4mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
4500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
95uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2992AILDX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP2992AILDX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

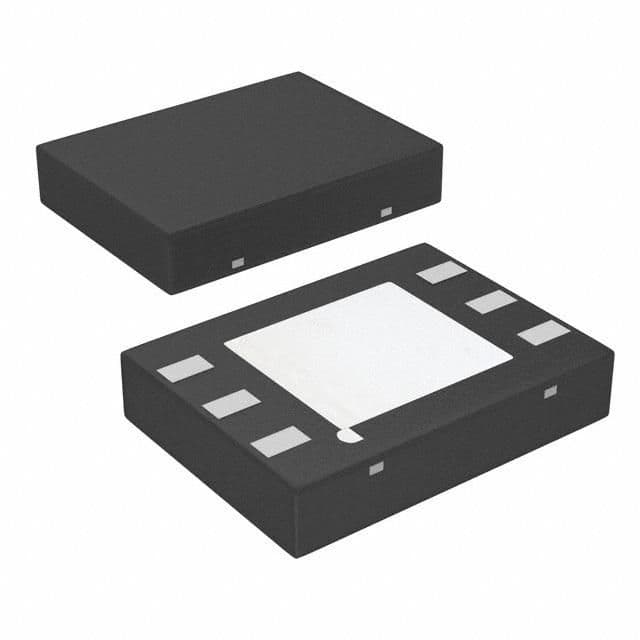

Product Images
