The LP2996AMR/NOPB is a surface mount power management IC from Texas Instruments, packaged in a SOP package. It operates over a temperature range of 0°C to 125°C and has a maximum operating supply current of 320uA. The device is RoHS compliant and lead free. It can handle an output current of up to 1.5A.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP2996AMR/NOPB technical specifications.
General
| Package/Case | SOP |
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 4.89mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Operating Supply Current | 320uA |
| Output Current | 1.5A |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Quiescent Current | 320uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.48mm |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LP2996AMR/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP2996AMR/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

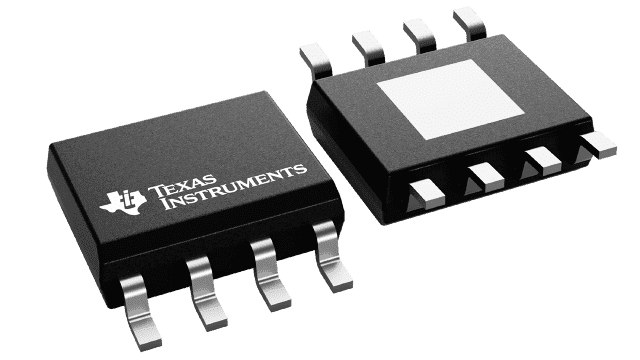

Product Images
