Low-power strobed differential comparator, surface mount, in an 8-SOIC package. Features a 1.2µs response time and 100dB voltage gain. Operates with a dual supply voltage range of 1.75V to 15V, or a single supply from 3.5V to 30V. Maximum supply current is 300µA. Input bias current is 100nA, with an input offset voltage of 7.5mV.
PackageSOIC
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP311D technical specifications.
General
Package/Case
SOIC
Dual Supply Voltage
9V
Height
1.58mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
7.5mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.75V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
300uA
Max Supply Voltage
30V
Min Supply Voltage
3.5V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
100nA
Output Current per Channel
25mA
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
300uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
1.2us
RoHS Compliant
Yes
Series
LP311
Supply Current
300uA
Voltage Gain
100dB
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP311D Datasheet
Download the complete datasheet for Texas Instruments LP311D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

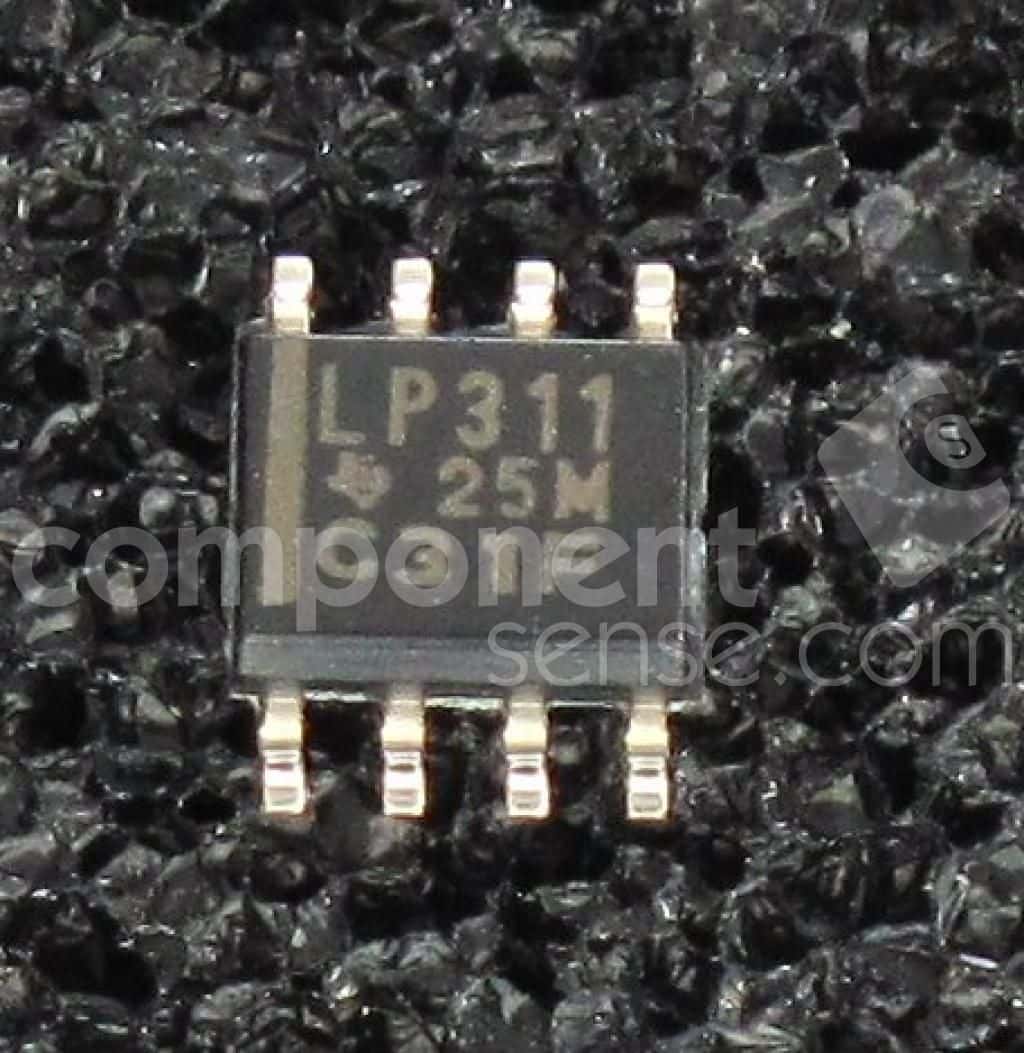

Product Images
