Quad operational amplifier featuring a 100kHz gain bandwidth product and 0.05V/µs slew rate. This general-purpose amplifier offers a 2mV input offset voltage and 80dB common mode rejection ratio. Designed for surface mount applications, it operates from a 3V to 32V supply range with a typical supply current of 85µA. The device is housed in a 14-pin SOIC package.
PackageSOIC
Current85uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP324MX technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOIC
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
100kHz
Input Bias Current
2nA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Operating Supply Current
85uA
Operating Supply Voltage
16V
Output Current
20mA
Output Current per Channel
10mA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
0.05V/µs
Supply Current
85uA
Technology
BIPOLAR
Voltage Gain
93.98dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP324MX Datasheet
Download the complete datasheet for Texas Instruments LP324MX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

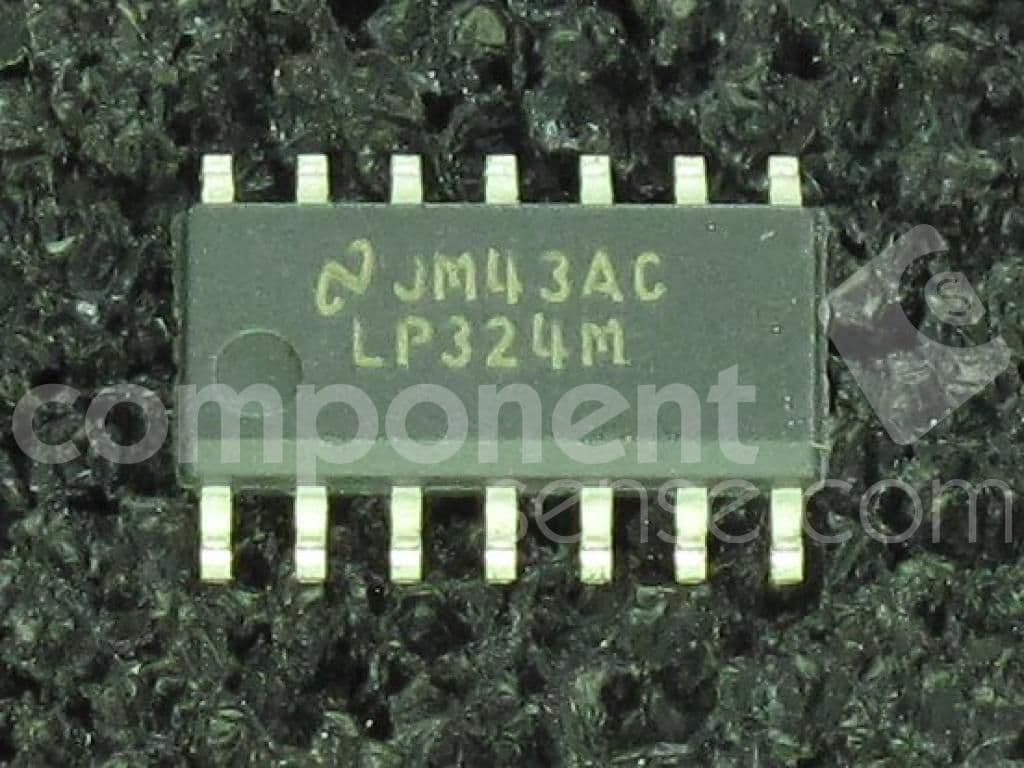

Product Images
