Active low reset IC with a 2.63V reset threshold, featuring programmable delay and 1% accuracy. This power management IC monitors a single voltage, operating from 0.5V to 5.5V with a quiescent current of 16µA. Packaged in a 5-SOT-23 surface-mount configuration, it offers a maximum output current of 10mA and a power dissipation of 300mW. Suitable for applications within a -20°C to 85°C temperature range.
PackageSOT-23-5
Current16uA
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Texas Instruments LP3470M5-2.63 technical specifications.
General
Package/Case
SOT-23-5
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
10mA
Max Power Dissipation
300mW
Max Reset Threshold Voltage
5V
Min Reset Threshold Voltage
2.4V
Max Supply Voltage
5.5V
Min Supply Voltage
500mV
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
16uA
Overvoltage Threshold
2.6563V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
300mW
Quiescent Current
16uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
1ms
RoHS Compliant
No
Supply Current
16uA
Termination
SMD/SMT
Threshold Voltage
2.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.6037V
DC Rated Voltage
5V
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3470M5-2.63 Datasheet
Download the complete datasheet for Texas Instruments LP3470M5-2.63 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

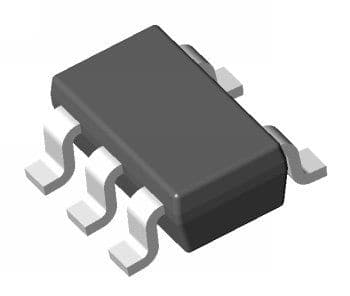

Product Images
