Single-channel power supply support circuit, designed for surface mount applications in a SOT-23-5 package. Features a fixed reset threshold voltage of 4V, with a maximum overvoltage threshold of 4.04V and a minimum undervoltage threshold of 3.96V. Operates within a supply voltage range of 500mV to 5.5V, with a low operating supply current of 16µA. Includes active-low reset with a 1ms reset timeout. Maximum power dissipation is 300mW, with an operating temperature range from -20°C to 85°C.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP3470M5-4.00 technical specifications.
General
Package/Case
SOT-23-5
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Power Dissipation
300mW
Max Reset Threshold Voltage
4.04V
Min Reset Threshold Voltage
3.96V
Max Supply Voltage
5.5V
Min Supply Voltage
500mV
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
16uA
Overvoltage Threshold
4.04V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
16uA
Radiation Hardening
No
Reset
Active Low
Reset Timeout
1ms
RoHS Compliant
No
Threshold Voltage
4V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.96V
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3470M5-4.00 Datasheet
Download the complete datasheet for Texas Instruments LP3470M5-4.00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

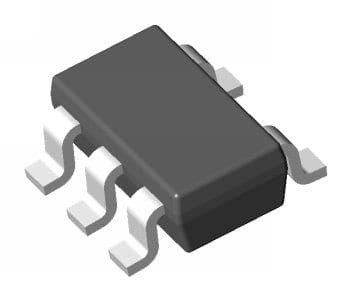

Product Images
