3.3V fixed positive LDO regulator with 1.5A maximum output current. Features 0.435V dropout voltage and 1.5% accuracy. Operates from a 2.5V to 7V input voltage range. Packaged in a TO-261-5 (SOT-223) surface mount package, supplied on tape and reel. Offers 57dB PSRR and a quiescent current of 3mA.
PackageTO-261-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3855EMP-3.3 technical specifications.
General
Accuracy
1.5%
Package/Case
TO-261-5
Lead Free
Contains Lead
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
3.3V
Max Supply Current
10mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
57dB
Quiescent Current
3mA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3855EMP-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP3855EMP-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

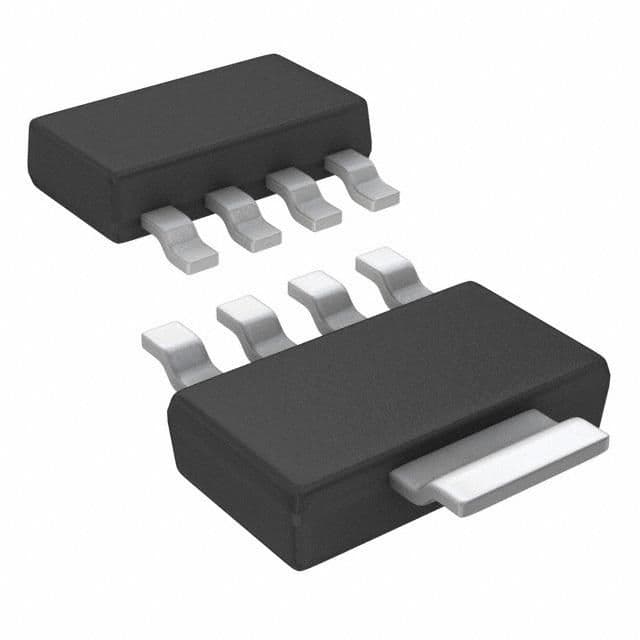

Product Images
