Texas Instruments
LP3856ES-3.3
3-A, 7V, ultra-low-dropout voltage regulator with enable 5-DDPAK/TO-263 -40 to 125
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP3856ES-3.3 technical specifications.
General
Package/Case
TO-263
Dropout Voltage
390mV
Lead Free
Contains Lead
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
3A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
4mA
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP3856ES-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP3856ES-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

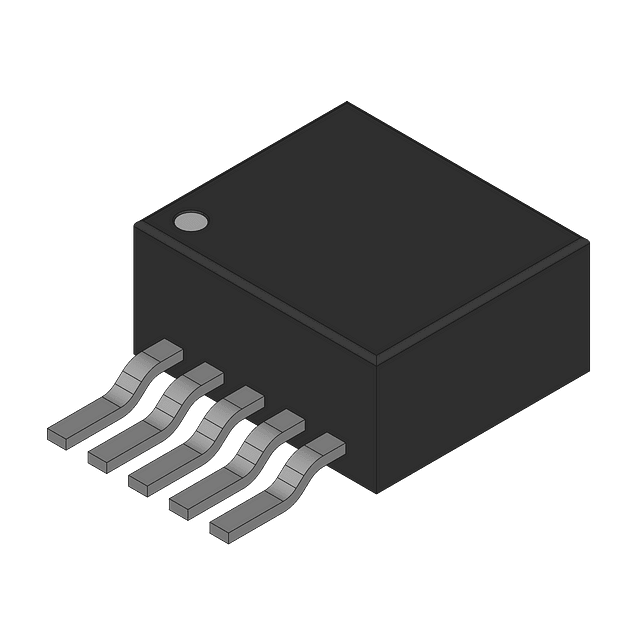

Product Images
