500mA, 5V positive fixed output linear voltage regulator with 250mV dropout voltage at 500mA. Features a maximum input voltage of 10V and a minimum input voltage of 2.7V, with 2% output voltage accuracy. Operates across a temperature range of -40°C to 125°C and is housed in a TO-252 surface mount package. This RoHS compliant component offers a quiescent current of 100uA.
PackageTO-252
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38691DT-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-252
Dropout Voltage
250mV
Height
2.3mm
Lead Free
Lead Free
Length
6.58mm
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
100uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP38691DT-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP38691DT-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

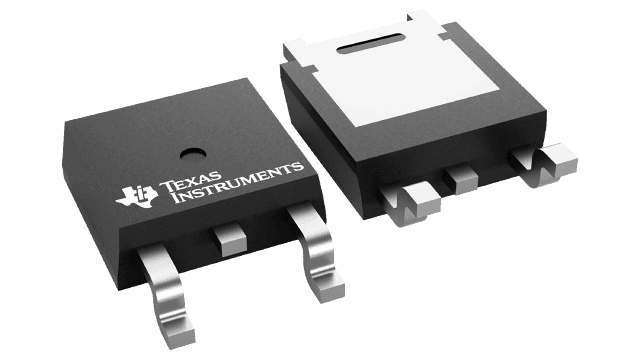

Product Images
