3.3V positive fixed output linear voltage regulator with 500mA maximum output current. Features a 0.55V dropout voltage and 2% accuracy. Operates from a 2.7V to 10V input voltage range with a maximum quiescent current of 55µA. Surface mountable in a PDSO6 package, suitable for automotive applications.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38691SD-3.3 technical specifications.
General
Accuracy
2%
Lead Free
Contains Lead
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Max Supply Current
100uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
55uA
Radiation Hardening
No
RoHS Compliant
No
Series
Automotive, AEC-Q100
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP38691SD-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP38691SD-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

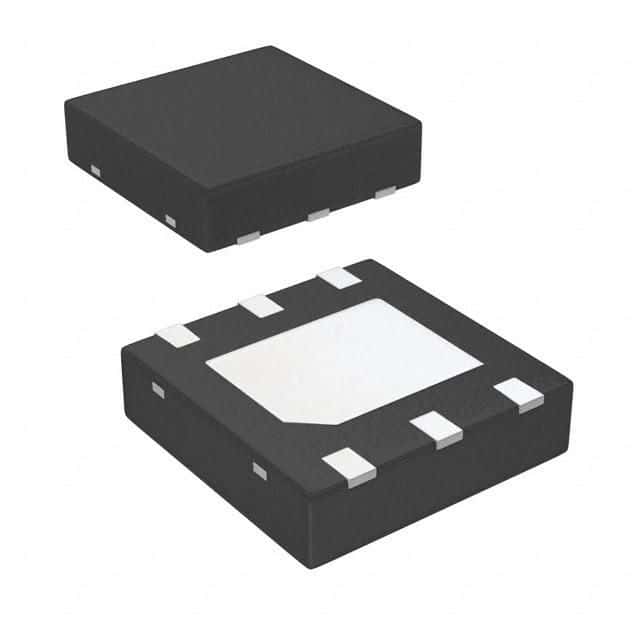

Product Images
