5V fixed output, positive polarity, low-dropout voltage regulator with 1A maximum output current. Features a 450mV dropout voltage and 2.5% output voltage accuracy. Operates with a 2.7V to 10V input voltage range and a maximum supply current of 100µA. This surface mount component is housed in a SOT-223 package and offers a 55dB power supply rejection ratio.
PackageSOT-223
Voltage5V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38692MP-5.0 technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
450mV
Lead Free
Contains Lead
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Max Supply Current
100uA
Max Supply Voltage
10V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2.5%
Packaging
Cut Tape
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
55uA
Reach SVHC Compliant
No
RoHS Compliant
No
Termination
SMD/SMT
Voltage
5V
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP38692MP-5.0 Datasheet
Download the complete datasheet for Texas Instruments LP38692MP-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

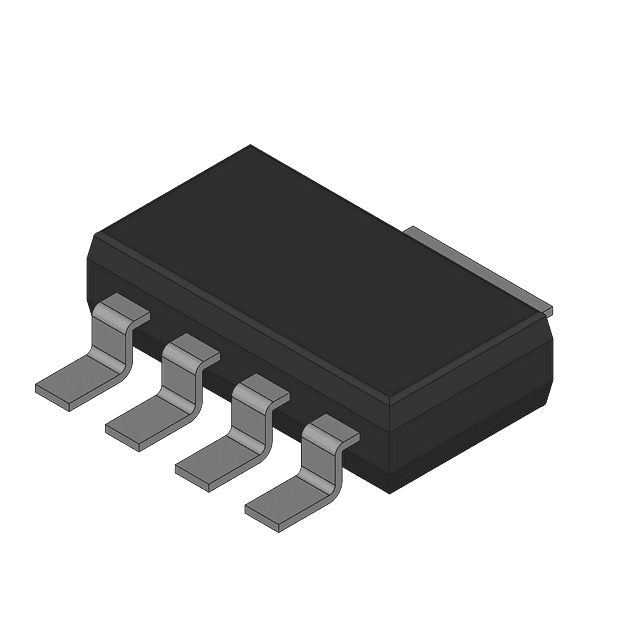

Product Images
