1-A, 3.3V fixed output, positive polarity, low-dropout (LDO) voltage regulator. Features a maximum input voltage of 10V and a dropout voltage of 650mV. Offers a 2.5% accuracy and a Power Supply Rejection Ratio (PSRR) of 55dB. Operates from -40°C to 125°C with a quiescent current of 55µA. Surface mountable in a 6-WSON package, supplied on tape and reel.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38692SDX-3.3/NOPB technical specifications.
General
Accuracy
2.5%
Dropout Voltage
650mV
Lead Free
Lead Free
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
3.3V
Max Supply Current
100uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
4500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
55uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP38692SDX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP38692SDX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

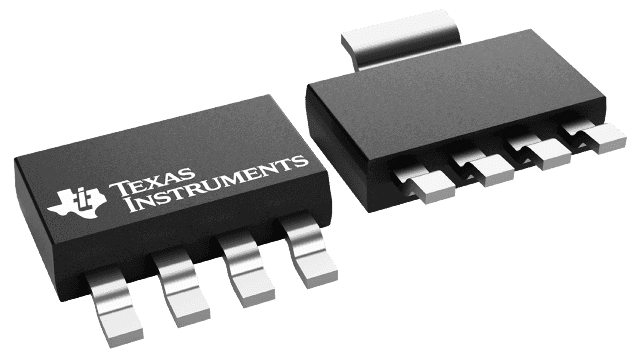

Product Images
