5V fixed positive linear voltage regulator with 500mA output current and 0.45V dropout voltage. Features 2% accuracy, 55dB PSRR, and a maximum input voltage of 10V. Operates from 2.7V to 10V input, with a quiescent current of 55µA. Packaged in a TO-261-5 (SOT-223) surface mount package, suitable for tape and reel deployment.
PackageTO-261-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38693MPX-5.0 technical specifications.
General
Accuracy
2%
Package/Case
TO-261-5
Lead Free
Contains Lead
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
5V
Max Supply Current
100uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
55uA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP38693MPX-5.0 Datasheet
Download the complete datasheet for Texas Instruments LP38693MPX-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

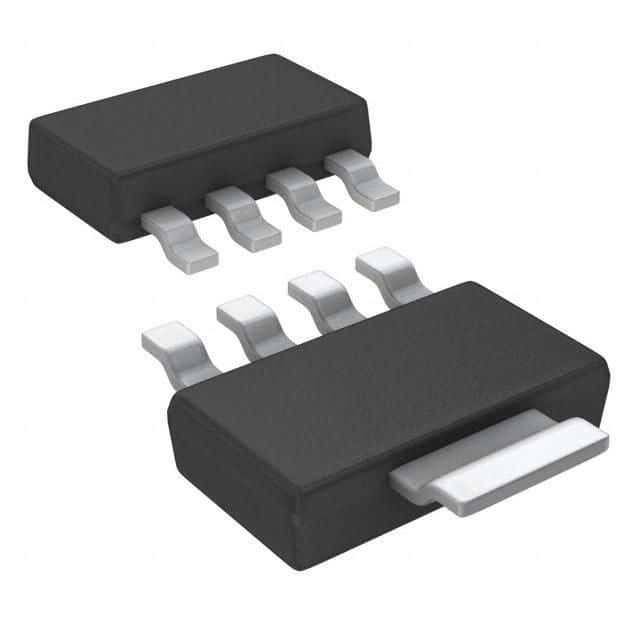

Product Images
