1.5A Fast Ultra Low Dropout Linear Regulator, offering a fixed 3.3V output voltage with 1.5% accuracy. This positive voltage regulator supports a maximum input voltage of 7V and a minimum of 2.5V, delivering up to 1.5A output current. Featuring a low quiescent current of 5mA and a maximum supply current of 15mA, it operates across a wide temperature range from -40°C to 125°C. Packaged in a 5-SOT-223 (TO-261-5) surface mount configuration, it is supplied on tape and reel.
PackageTO-261-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3872EMP-3.3 technical specifications.
General
Accuracy
1.5%
Package/Case
TO-261-5
Lead Free
Contains Lead
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
3.3V
Max Supply Current
15mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
57dB
Quiescent Current
5mA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3872EMP-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP3872EMP-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

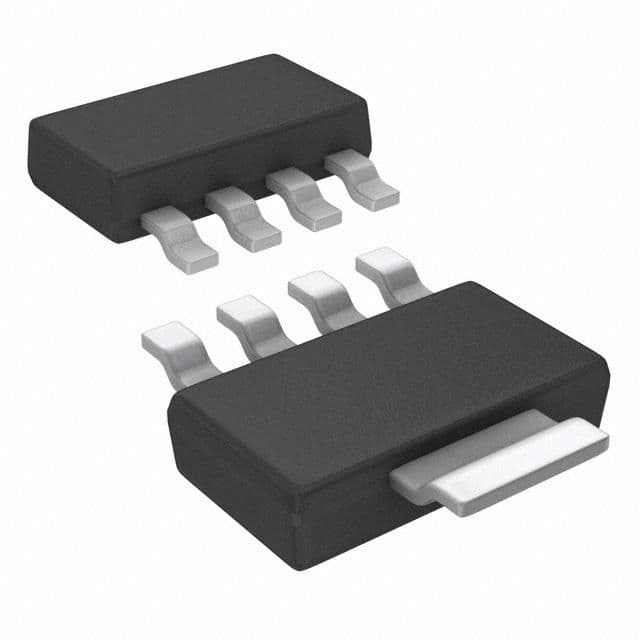

Product Images
