3A positive fixed output voltage regulator, 1.8V, with 1.5% accuracy. Features a low-dropout design, capable of handling a maximum input voltage of 7V and a minimum of 2.5V. This surface mount component offers a maximum output current of 3A and operates within a temperature range of -40°C to 125°C. Includes power good and enable functions, with a typical quiescent current of 9mA.
PackageTO-263-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3873ES-1.8/NOPB technical specifications.
General
Accuracy
1.5%
Package/Case
TO-263-6
Lead Free
Contains Lead
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
1.8V
Max Supply Current
15mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
57dB
Quiescent Current
9mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3873ES-1.8/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3873ES-1.8/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

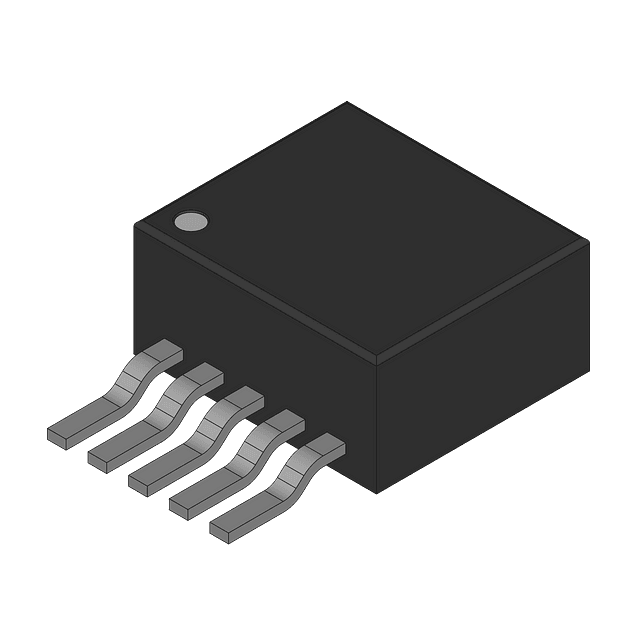

Product Images
