800mA fixed 3.3V low-dropout voltage regulator, SOT-223 package, surface mount. Features 240mV dropout voltage, 7V maximum input voltage, and 2.5V minimum input voltage. Operates from -40°C to 125°C with 5mA quiescent current. Single output, single regulator configuration.
PackageSOT-223
Voltage3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP3874EMP-3.3 technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
240mV
Height
1.8mm
Lead Free
Contains Lead
Length
6.5mm
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
3.3V
Max Supply Voltage
7V
Min Supply Voltage
2.5V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
5mA
Reach SVHC Compliant
No
RoHS Compliant
No
Termination
SMD/SMT
Thickness
1.6mm
Voltage
3.3V
Width
3.56mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP3874EMP-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP3874EMP-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

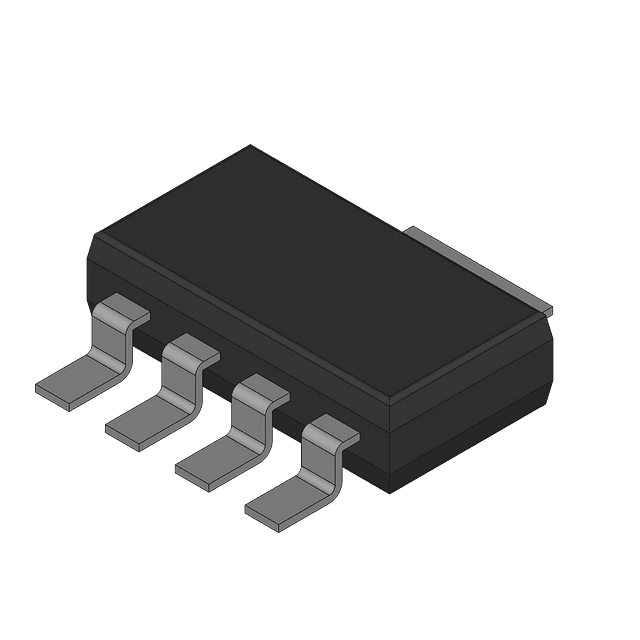

Product Images
