Positive fixed output voltage regulator, 1.5V, with 1.5A maximum output current. Features 0.315V dropout voltage and 1.5% accuracy. Operates with a maximum input voltage of 5.5V and a minimum input voltage of 1.615V. Housed in a TO-220-5 package for through-hole mounting. Offers 65dB power supply rejection ratio and 30µA quiescent current.
PackageTO-220-5
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38842T-1.5 technical specifications.
General
Accuracy
1.5%
Package/Case
TO-220-5
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
1.615V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
1.5V
Max Supply Current
40mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
30uA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP38842T-1.5 Datasheet
Download the complete datasheet for Texas Instruments LP38842T-1.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

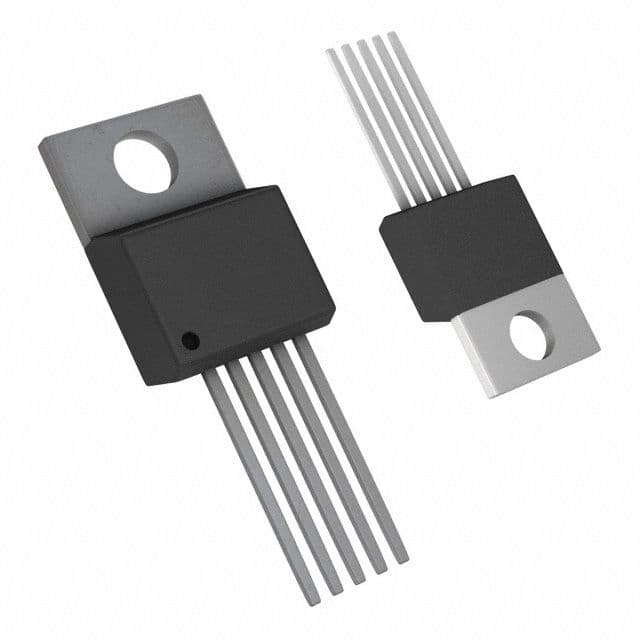

Product Images
