Texas Instruments
LP38851S-ADJ
0.8 V-1.8V ADJUSTABLE POSITIVE LDO REGULATOR, 0.2V DROPOUT, PSSO7, TO-263, 7 PIN
PackageTO-263-8
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP38851S-ADJ technical specifications.
General
Package/Case
TO-263-8
Lead Free
Contains Lead
Max Input Voltage
5.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
1.8V
Min Output Voltage
800mV
Max Supply Current
9mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Adjustable
Output Voltage
1.8V
Package Quantity
45
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
61dB
Quiescent Current
300uA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP38851S-ADJ Datasheet
Download the complete datasheet for Texas Instruments LP38851S-ADJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

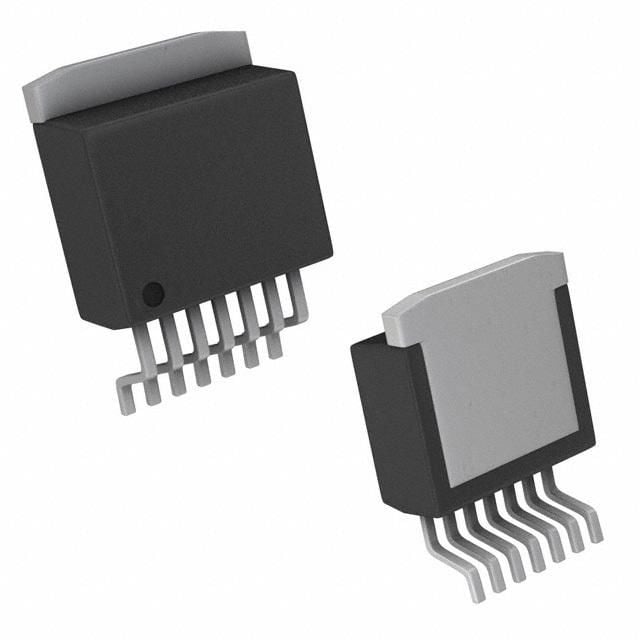

Product Images
