1.2V fixed positive linear voltage regulator with 3A output current and 1.2V minimum output voltage. Features 0.45V dropout voltage and 1% accuracy. Operates with a maximum input voltage of 5.5V and a minimum input voltage of 1.15V. Housed in a TO-220-5 package for through-hole mounting. Offers a 65dB power supply rejection ratio and a maximum supply current of 15mA.
PackageTO-220-5
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP38859T-1.2 technical specifications.
General
Accuracy
1%
Package/Case
TO-220-5
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
1.15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
1.2V
Max Supply Current
15mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
8.5mA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP38859T-1.2 Datasheet
Download the complete datasheet for Texas Instruments LP38859T-1.2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

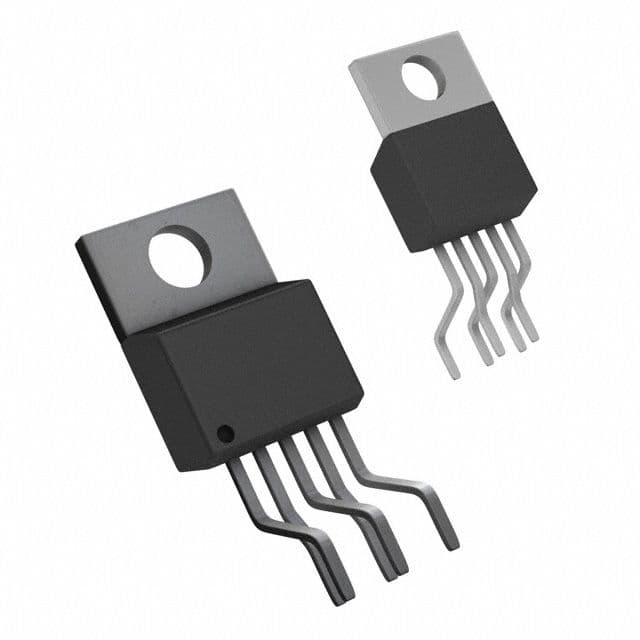

Product Images
