Texas Instruments
LP3952RLX/NOPB
6-channel Color LED driver with Audio Synchronization 36-DSBGA -30 to 85
Frequency2MHz
PackageVFBGA
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP3952RLX/NOPB technical specifications.
General
Package/Case
VFBGA
Dimming
PWM
Features
I²C
Frequency
2MHz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
6
Number of Outputs
6
Number of Segments
6
Output Current per Channel
40mA
Output Voltage
5.3V
Packaging
Tape and Reel
Quiescent Current
450uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Supply Current
1mA
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3952RLX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3952RLX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

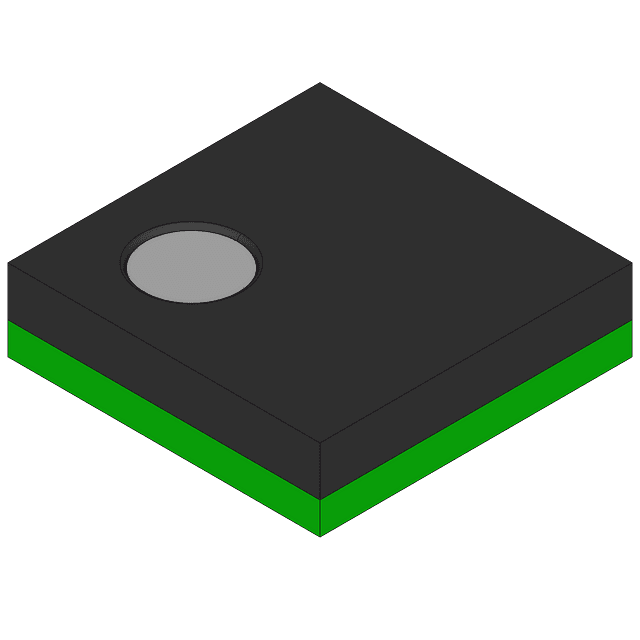

Product Images
