1.5A positive fixed output linear voltage regulator with 2.5V nominal output voltage. Features 1.5% accuracy and a low dropout voltage of 380mV. Operates with a maximum input voltage of 7V and a minimum input voltage of 2.5V. Housed in a SOT-223 surface mount package, this component offers a current limit of 2A and a quiescent current of 4mA. Designed for operation across a temperature range of -40°C to 125°C.
PackageSOT-223
Current Rating1.5A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3962EMP-2.5 technical specifications.
General
Accuracy
1.5%
Package/Case
SOT-223
Current Rating
1.5A
Dropout Voltage
380mV
Lead Free
Contains Lead
Min Current Limit
2A
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3962EMP-2.5 Datasheet
Download the complete datasheet for Texas Instruments LP3962EMP-2.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

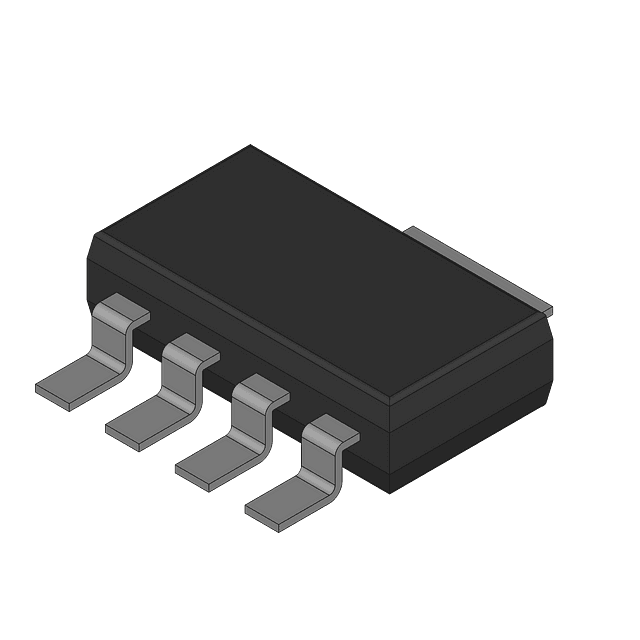

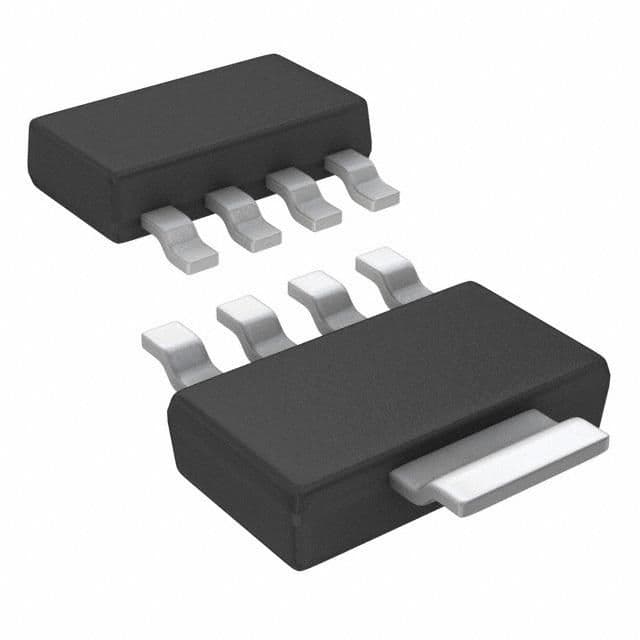

Product Images
