1.5A positive fixed output voltage regulator, offering 3.3V output with 1.5% accuracy. Features a low dropout voltage of 380mV and a maximum input voltage of 7V. Designed for surface mount applications in a TO-263-6 package, operating from -40°C to 125°C. Includes an enable function and a quiescent current of 4mA.
PackageTO-263-6
Current Rating1.5A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3962ES-3.3 technical specifications.
General
Accuracy
1.5%
Package/Case
TO-263-6
Current Rating
1.5A
Dropout Voltage
380mV
Height
4.83mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
2A
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
RoHS Compliant
No
Thickness
4.58mm
Width
8.42mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3962ES-3.3 Datasheet
Download the complete datasheet for Texas Instruments LP3962ES-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

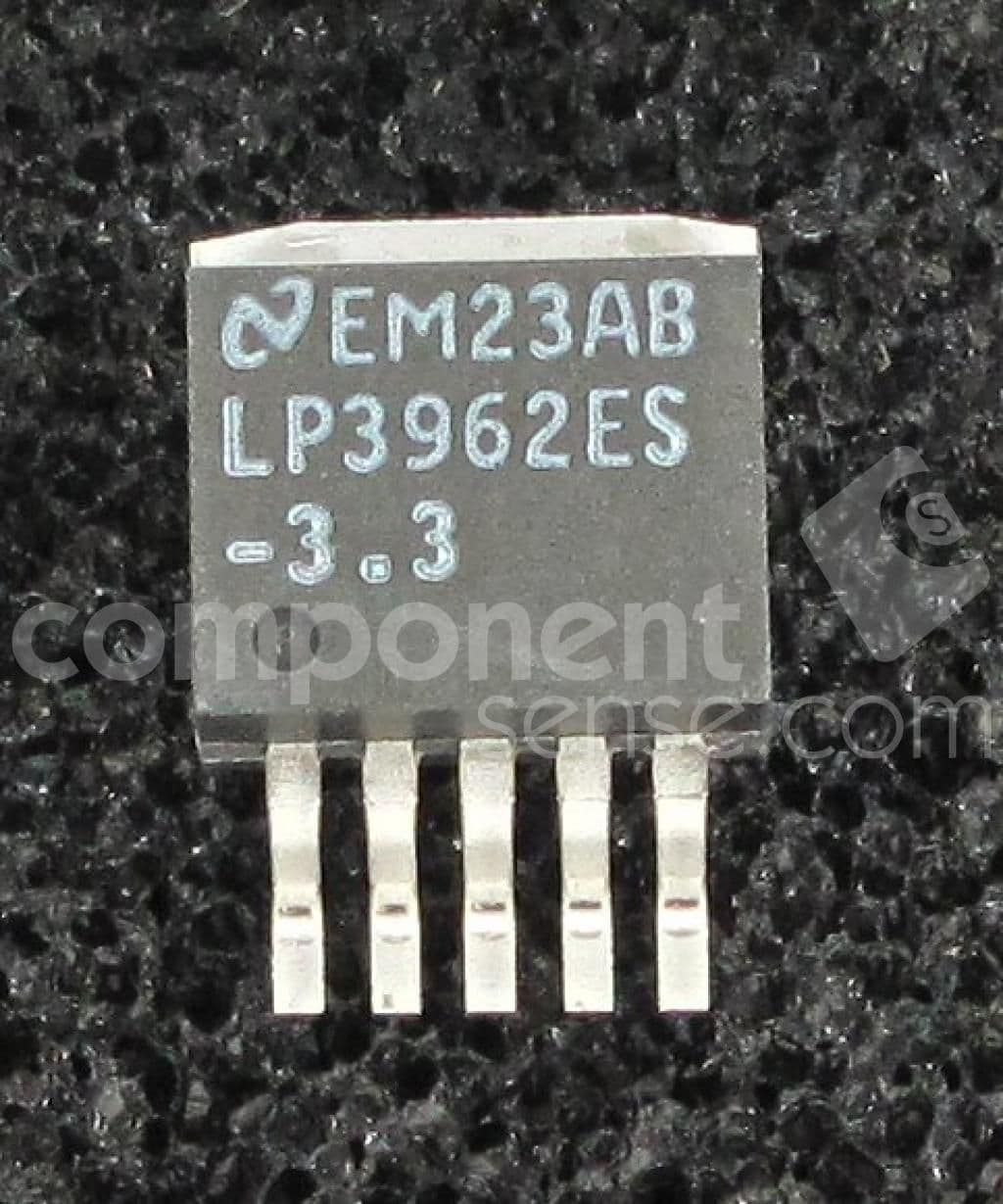

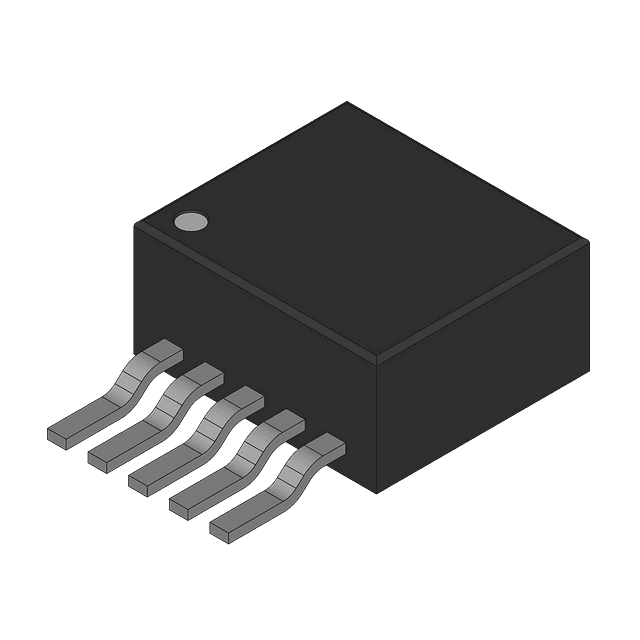

Product Images
