1.8V fixed positive LDO regulator, offering 1.5A output current with a low dropout voltage of 38mV. Features 1.5% accuracy and a maximum input voltage of 7V. Designed for surface mounting in a TO-263-6 package, operating from -40°C to 125°C. Includes sense and enable functionality.
PackageTO-263-6
Current Rating1.5kA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3965ES-1.8 technical specifications.
General
Accuracy
1.5%
Package/Case
TO-263-6
Current Rating
1.5kA
Dropout Voltage
38mV
Height
4.57mm
JESD-30 Code
R-PSSO-G5
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
2A
Max Input Voltage
7V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
1.854V
Min Output Voltage
1.746V
Moisture Sensitivity Level
3
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.8V
Package Body Material
Plastic
Package Quantity
45
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
235°C
Polarity
Positive
Quiescent Current
4mA
Regulator Type
FIXED POSITIVE LDO REGULATOR
RoHS Compliant
No
Surface Mount
Yes
Technology
BICMOS
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
SINGLE
Thickness
4.58mm
Time @ Peak Reflow Temperature-Max (s)
30s
Width
8.635mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LP3965ES-1.8 Datasheet
Download the complete datasheet for Texas Instruments LP3965ES-1.8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

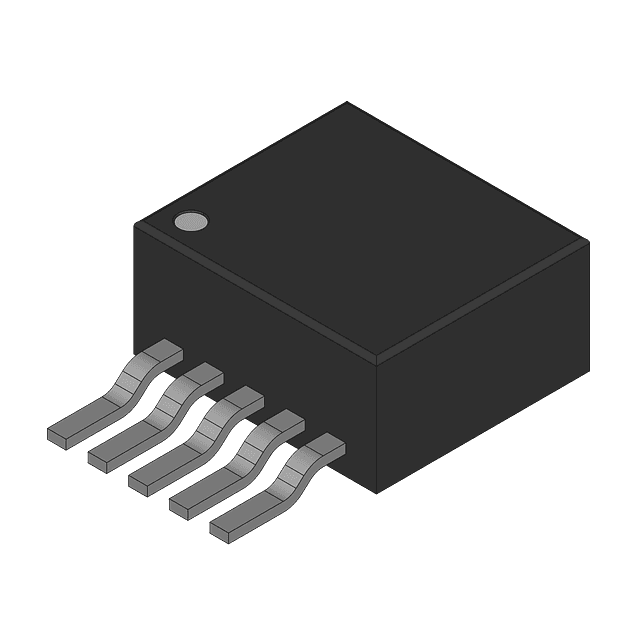

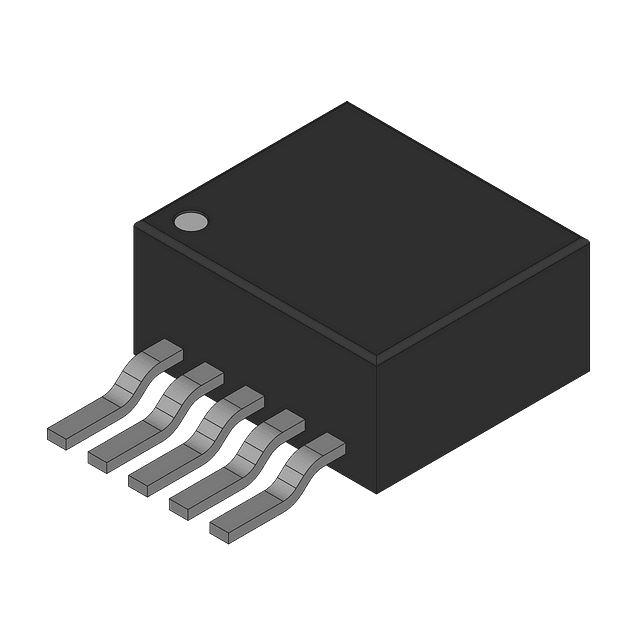

Product Images
