300mA, fixed 2.5V output, positive polarity, low-dropout voltage regulator. Features a 132mV dropout voltage and a maximum input voltage of 6V. Operates across a -40°C to 125°C temperature range with 210µA quiescent current. Supplied in an 8-VSSOP package for surface mounting, RoHS compliant, and available on tape and reel.
PackageMSOP
MountingSurface Mount
PolarityPositive
Power476W
Quick Jump:
Technical Specifications
Texas Instruments LP3981IMM-2.5/NOPB technical specifications.
General
Package/Case
MSOP
Dropout Voltage
132mV
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
2.5V
Max Power Dissipation
476mW
Max Supply Voltage
6V
Min Supply Voltage
2.5V
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
476W
Quiescent Current
210uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3981IMM-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3981IMM-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

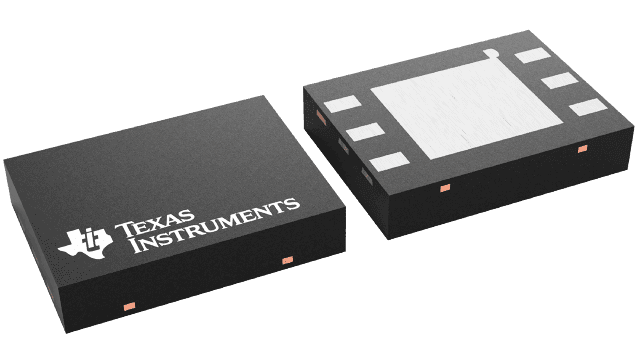

Product Images
