300mA positive fixed output voltage regulator, offering 3V output with 2% accuracy. Features a low quiescent current of 210uA and a maximum input voltage of 6V, operating from 2.7V. This surface mount device, packaged in VSSOP, boasts a 55dB PSRR and a maximum power dissipation of 476mW. Suitable for a wide temperature range of -40°C to 125°C, it is lead-free and RoHS compliant.
PackageVSSOP
MountingSurface Mount
PolarityPositive
Power476mW
Quick Jump:
Technical Specifications
Texas Instruments LP3981IMM-3.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
VSSOP
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Min Output Voltage
3V
Max Power Dissipation
476mW
Max Supply Current
210uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
476mW
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
210uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3981IMM-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3981IMM-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

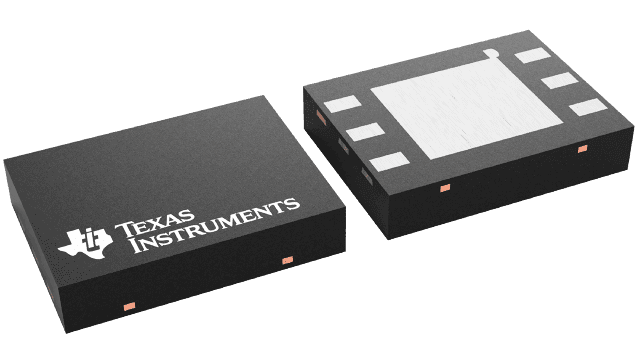

Product Images
