Texas Instruments
LP3981IMM-3.03/NOPB
300-mA, high-accuracy, low-dropout voltage regulator with enable 8-VSSOP -40 to 125
PackageVSSOP
MountingSurface Mount
PolarityPositive
Power476mW
Quick Jump:
Technical Specifications
Texas Instruments LP3981IMM-3.03/NOPB technical specifications.
General
Accuracy
2%
Package/Case
VSSOP
Dropout Voltage
132mV
Height
0.86mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Mount
Surface Mount
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
3.03V
Output Voltage Accuracy
2%
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
476mW
Quiescent Current
210uA
RoHS Compliant
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3981IMM-3.03/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3981IMM-3.03/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

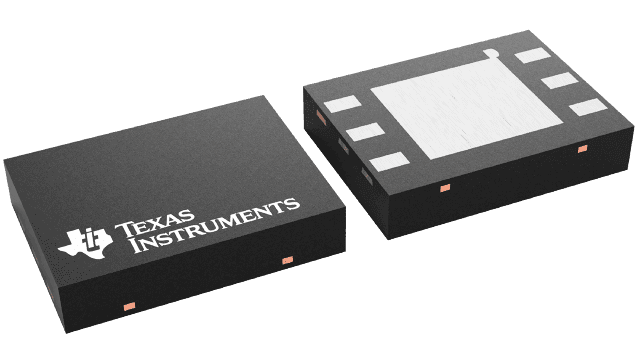

Product Images
