150mA fixed output positive linear voltage regulator, featuring a low 80µA quiescent current and 120mV dropout voltage. Operates with input voltages from 2V to 6V, delivering a stable 2.5V output with 1.5% accuracy. This surface-mount component is housed in a 5-lead SOT-23 package, suitable for operation between -40°C and 125°C.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3990MF-2.5/NOPB technical specifications.
General
Package/Case
SOT-23
Dropout Voltage
120mV
JESD-30 Code
R-PDSO-G5
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
2.6V
Min Output Voltage
2.4V
Moisture Sensitivity Level
1
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Output Current
150mA
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
1.5%
Package Body Material
Plastic
Package Quantity
1000
Package Shape
Rectangular
Packaging
Tape and Reel
Peak Reflow Temperature (Cel)
260°C
Polarity
Positive
Quiescent Current
80uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Surface Mount
Yes
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
DUAL
Time @ Peak Reflow Temperature-Max (s)
40s
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3990MF-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3990MF-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

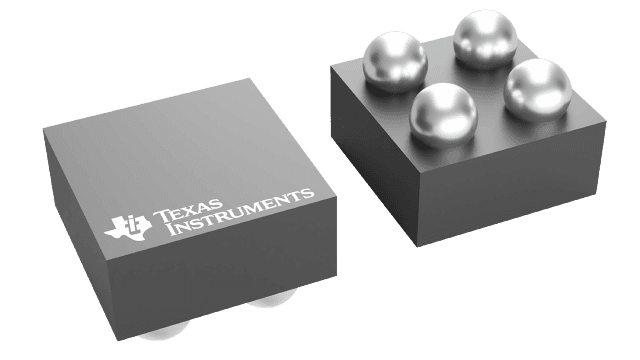

Product Images
